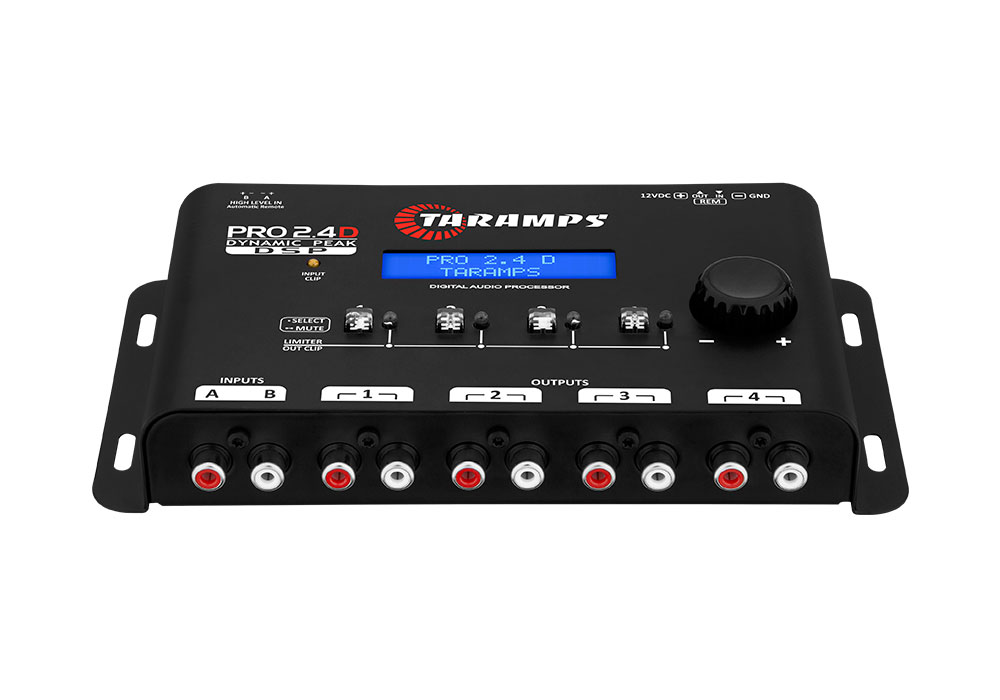

The Pro 2.4 Dynamic Peak DSP offers 4 outputs and stands out for its intuitive adjustments. Unlike other models, it is not necessary to give up resources to activate others, as they can all be used simultaneously. New features include Peak Limiter and RMS Limiter functions, increasing the performance and safety of the car audio system. It has crossover adjustments with various filters, 5-band input equalizer with variable center frequency, 12 preset equalizers, parametric output equalizer, alignment, routing, gain and attenuation adjustment, phase inversion, input and output clip indicator, remote signal output to activate amplifiers, audio generator, among other features. Its audio input options via RCA and High Level Input allow use with conventional and original players, and the Anti-pop system prevents unwanted noises when turning the sound on and off. The Pro 2.4 Dynamic Peak is ideal for keeping your sound system always regulated, aligned and with the quality you deserve.
| Input impedance | RCA: 10K Ohms WIRE: 50 Ohms |
|---|---|
| Output impedance | 47 Ohms |
| Maximum input level | RCA: 5.9Vpp (2.1V RMS) WIRE: 28Vpp (10V RMS) |
| Maximum output level | 5.9Vpp (2.1V RMS) |
| Frequency response | 10Hz ~ 22KHz (-1dB) |
| Total Harmonic Distortion | 0.01% |
| Signal to Noise Ratio | >90dB |
| Crosstalk (separation between channels) | >80dB |
| Input Channels | 02 |
| output channels | 04 |
| Routing | Inputs / Outputs: A, B, A+B |
| General gain | -80 to 0dB |
| Output gain | -45 to +15dB |
| cutoff frequency | Variable from 10Hz to 22KHz |
| Linkwitz Rilley Filters | -12, -18, -24, -30, -36, -42, -48dB/Octave |
| Butterworth filters | -6,-12,-18, -24, -30, -36, -42, -48dB/Octave |
| Alignment | Delay: 8.0mS (272cm / 107.09") |
| Phase | 0 / 180° |
| Adjustable Limiter | Adjustable RMS Limiter: Threshold: -48 to 0dB (8mV to 2VRMS) Attack: 0.1mS to 100mS Hold: 0 to 2000mS Release: 1mS to 2000mS Adjustable PEAK Limiter: Adjustable Threshold / Dynamics: 3 to 36dB Hold: 0 to 2000mS Release: 1mS to 2000mS |
| Input Equalizer | 5 bandas, 2 oitavas: Central Frequency: EQ.1 - 63Hz (adjustable from 40Hz to 100Hz) EQ.2 - 250Hz (adjustable from 160Hz to 400Hz) EQ.3 - 1000Hz (adjustable from 630Hz to 1600Hz) EQ.4 - 4000Hz (adjustable from 2500Hz to 6300Hz) EQ.5 - 16000Hz (adjustable from 10000Hz to 20000Hz) Attenuation - Gain: -12dB to +12dB Q Factor: 0.4 a 10 12 presets: Flat, Loudness, Bass Boost, Mid-Bass Boost, Treble Boost, Powerful, Electronic, Rock Style, Hip-Hop Style, Pop Music, Vocal e Competition |
| central frequency | (PT) |
| Individual MUTE function on outputs | (PT) |
| Audio Generator (Sine Waveform) | Frequency range: Variable from 10Hz to 22KHz Gain: -60 a 0dB (2mV a 2VRMS) Modes: Fixed Frequency / 3-Speed scanning |
| Languages | Brazilian Portuguese, English and Spanish |
| Memory Positions | Factory default + 3 assignable positions Screen saver function: Text up to 15 characters |
| POWER SUPPLY VOLTAGE (POWER) | 9 to 16VDC |
| Dimensions (W x H x D) | 7.80" x 1.46" x 4.45" (198 x 37 x 113 mm) |
| Weight | 0.99lb (0.45Kg) |
| EAN | 7908706601305 |
