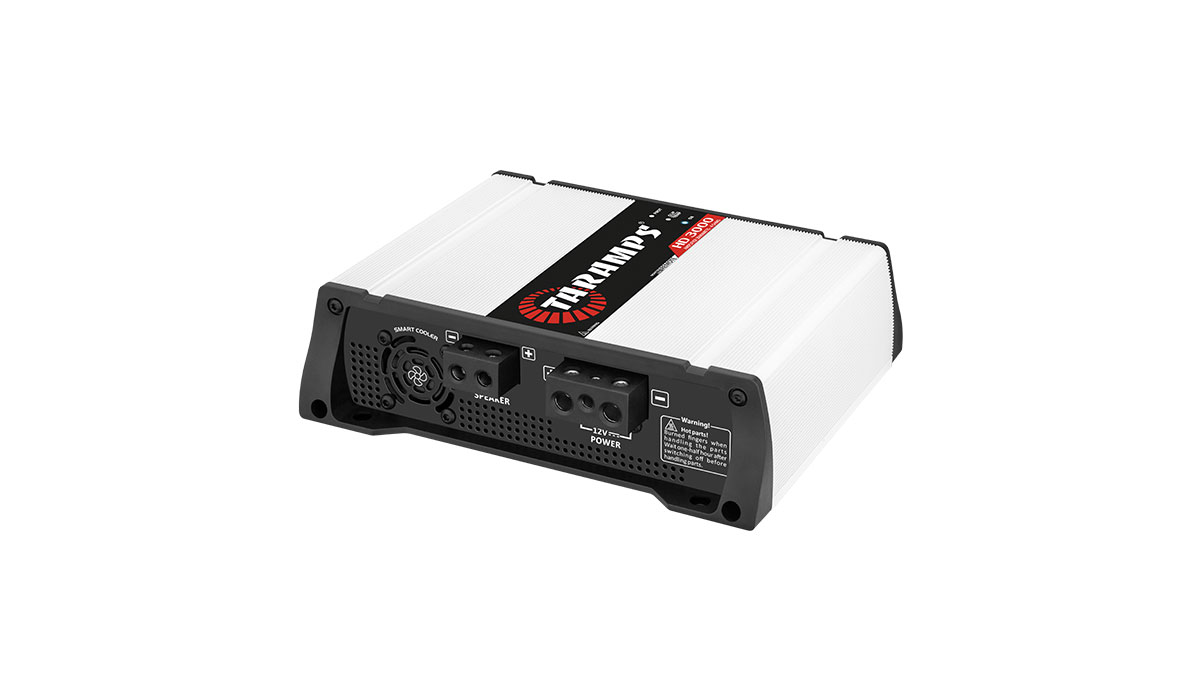

HD 3000 – 4 OHMS

Class D Taramps Amplifier (1 Channel of 3000 Watts RMS)


The Taramps HD 3000 is a 4 Ohm, single-channel amplifier capable of delivering 3000 Watts RMS of power. It is compatible with all types of speakers, drivers and tweeters.

* This product comes with an M1 LED Monitor

Product videos

Technical information
4 Ohms VERSION Nominal Power @12.6VDC
1 Ohm: N/A
2 Ohms: N/A
4 Ohms: 3000W RMS
8 Ohms: 2025W RMS
Number of Channels 01
Maximum power (PT)
Input Sensitivity 0.22V ~ 4V
Signal to Noise Ratio >89dB
Frequency Response 10Hz ~ 20kHz (-3dB)
Crossover high pass (HPF) 10Hz ~ 80Hz (-12dB/8ª) Variable
Crossover low pass (LPF) 80Hz ~ Full (-12dB/8ª) Variable
bass boost 0 ~ 10dB (50 Hz)
Input Impedance 10K Ohms
Output Impedance 4 Ohms
protection system Output Short-Circuit / High or Low Supply Voltage / Thermal Protection
Minimum Supply Voltage 9VDC
Maximum Supply Voltage 16VDC
Consumption at rest 1.9A
Maximum music consumption 149A
Maximum consumption in sinusoidal signal 298A
Dimensions (WxHxD) 9"x 2.56" x 7.32" (229 x 65 x 186mm)
Weight 4.96lbs (2.25kg)
EAN 7898556844925
