(PT) CRX4

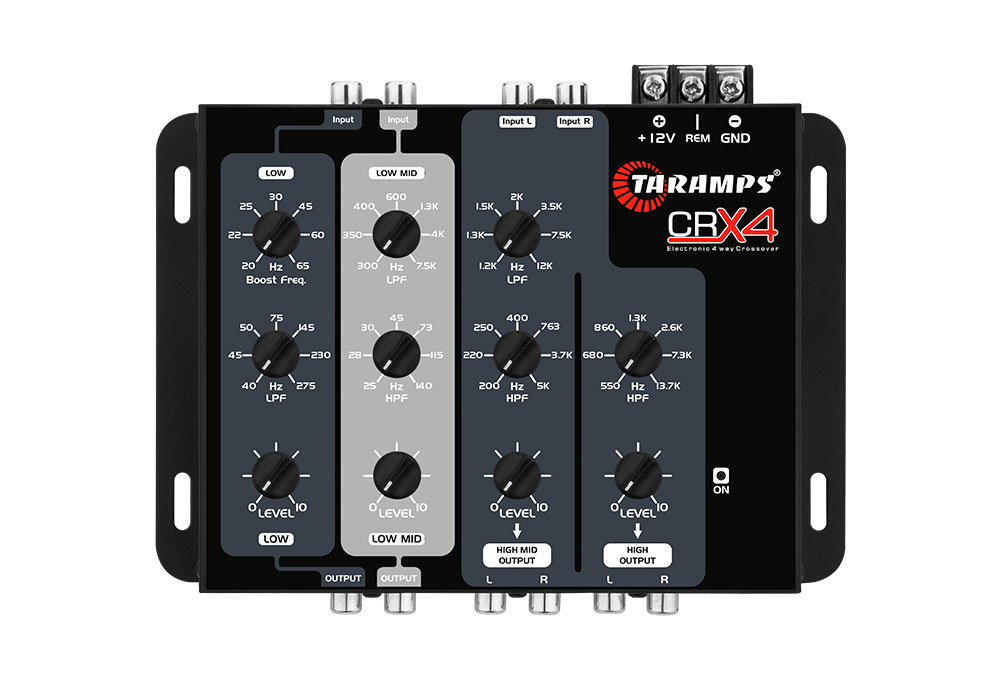

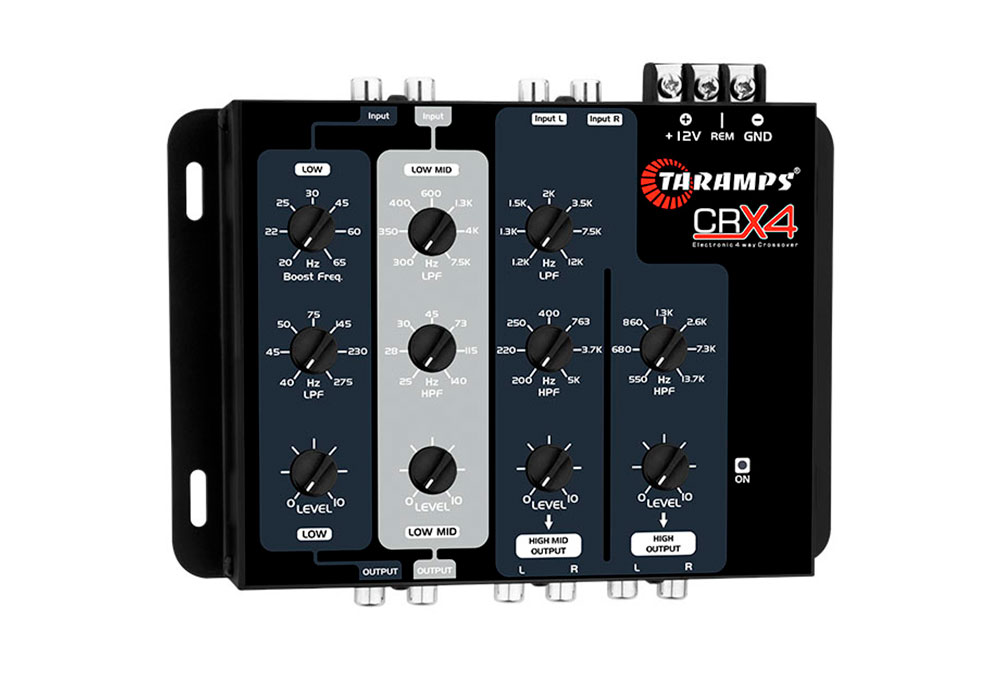

Crossover CRX4

Description

Sorry, this entry is only available in Brazilian Portuguese.

Product videos

Technical information
Output impedance (PT) 27K OHMS
Maximum input level (PT) 8V RMS
Maximum output level (PT) 8V RMS
Crosstalk (separation between channels) (PT) >80dB
Power supply voltage (PT) 10 ~15.5VDC
Protection system (PT) Contra inversão de polaridade
Number of ways (PT) 4
Low way (Mono) (PT) Frequência de corte / Variável (LPF): 40Hz ~275Hz (-12dB/8ª)
Bass Boost (PT) Frequência Central Variável: 20 ~65Hz (Ganho fixo 6dB)
Low Mid way (Mono) (PT) Frequência mínima de (corte HPF) / Variável: 25Hz ~ 140Hz (-12dB/8ª)
Frequência máxima de (corte LPF) / Variável: 300Hz ~7.5Hz (-12dB/8ª)
High Mid Way (Stereo) (PT) Frequência mínima de (corte HPF) / Variável: 200Hz ~5KHz (-12dB/8ª)
Frequência máxima de (corte LPF) / Variável: 1.2KHz ~ 12KHz(-12dB/8ª)
High way (Stereo) (PT) Frequência de corte / Variável: 550Hz ~13.7KHz (-12dB/8ª)
Dimensions (H x W x D) mm (PT) 190 x 40 x 145mm
Weight (PT) 0,560kg
EAN 7898556840118
Additional Information
Number of ways: 4

Low way (Mono)
Cutting frequency (LPF): Variable 40Hz ~ 275Hz (-12dB/8ª)
Bass Boost: Center Frequency Variable 20 ~ 65Hz (Fix Gain 6dB)

Low Mid way (Mono)
Minimum frequency of (cut HPF): Variable 25Hz ~ 140Hz (-12dB/8ª)
Maximum frequency of (cut LPF): Variable 300Hz ~ 7.5KHz (-12dB/8ª)

Via High Mid (Stereo)
Minimum frequency of (cut HPF): Variable 200Hz ~ 5KHz (-12dB/8ª)
Maximum frequency of (cut LPF): Variable 1.2KHz ~ 12KHz (-12dB/8ª)

Via High (Stereo)
Cutting frequency: Variable 550Hz ~ 13.7Hz (-12dB/8ª)

Output Impedance: 27K ohms
Maximum input level: 8V RMS
Maximum output level: 8V RMS
Crosstalk: >80dB
Protection: Reverse polarity
Power supply: With switched-mode DC-DC converter
Voltage Range: 10 ~ 15.5VDC
Nominal Consumption (12.6V): 0.38A
Dimensions (WxHxD): 7.48” x 1.57” x 5.71”
Weight: 1.23lb
