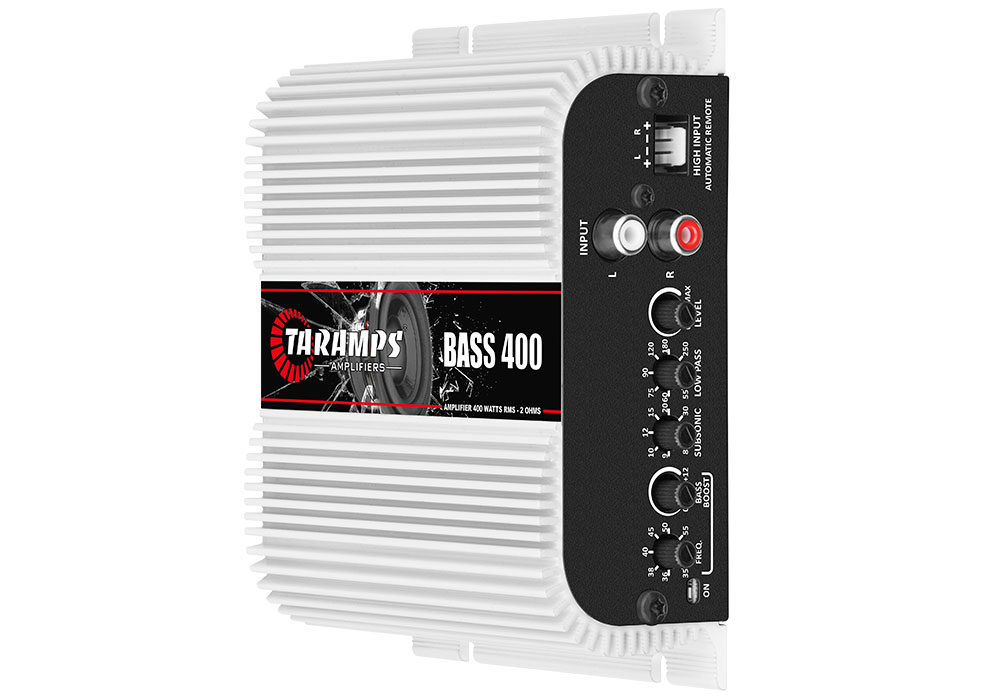

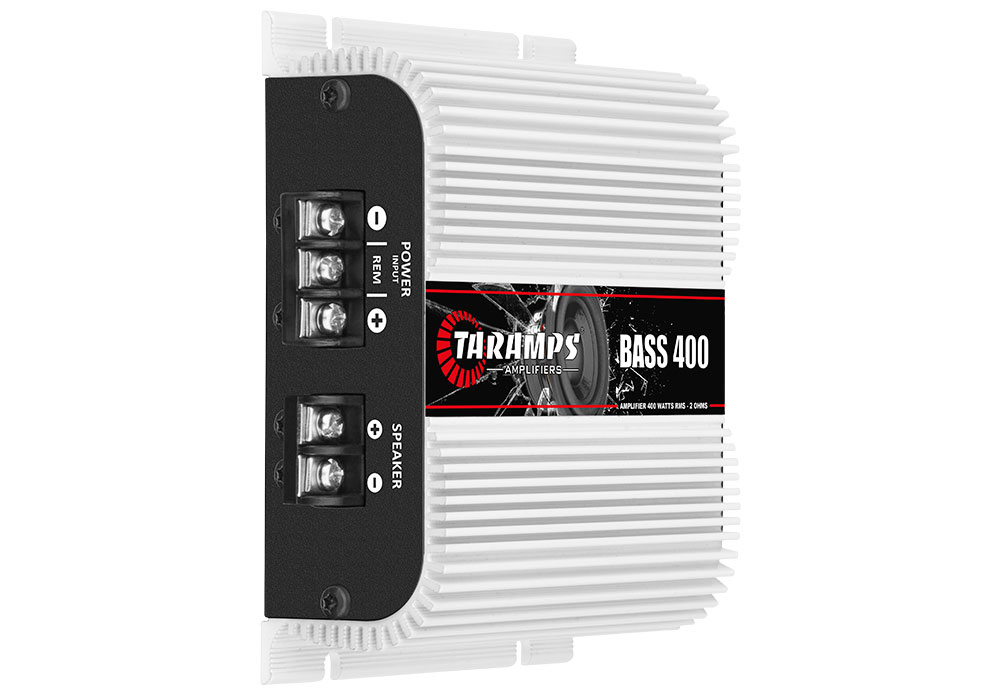

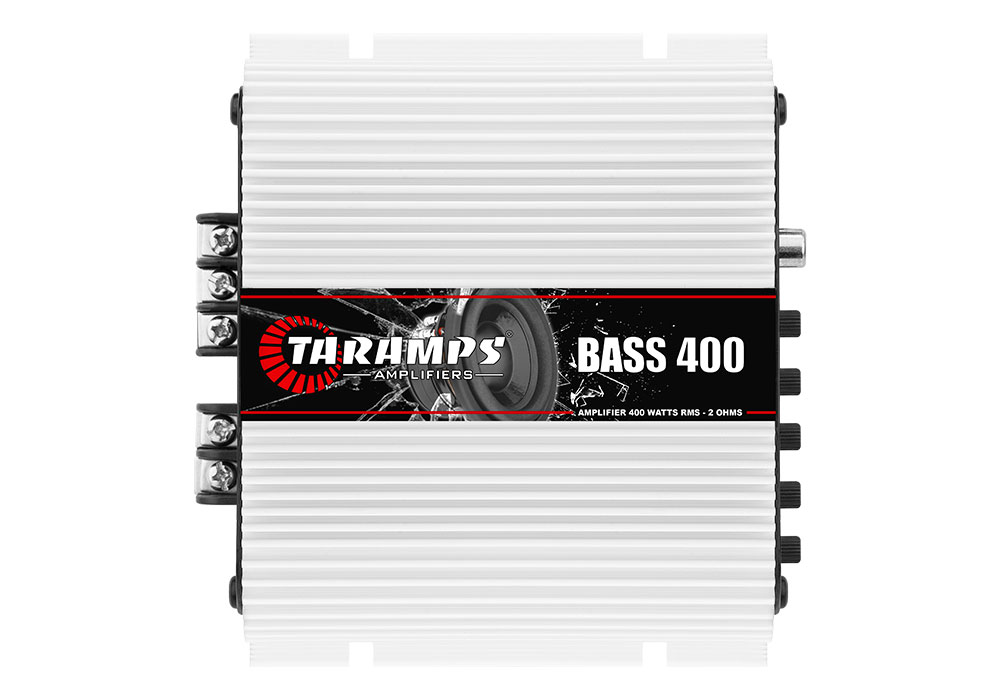

BASS 400

Class D Taramps Amplifier (1 Channel of 400 Watts RMS)


The BASS 400 amplifier by Taramps has been carefully designed with the highest technology, efficiency and performance for car audio systems. Designed mainly for sub and bass, that is, frequency responses in the range of 8Hz to 250Hz. It has a maximum power of 400 Watts in 1 channel of 2 ohms, with customized adjustments according to the trunk size and frequency appeal of each vehicle, through the BASS BOOST and the option of choosing the central frequency. The BASS 400 can offer much more displacement control, through the SUBSONIC FILTER, volume control and LOW PASS, to make your bass sound just perfect.

Product videos

Technical information
Operation class Class D
Minimum Output Impedance 2 Ohms
Number of Channels 01
Maximum power @ 13.8 VDC - 2 Ohms: 400 Watts RMS
@ 13.8 VDC - 4 Ohms: 214 Watts RMS
Input Sensitivity 320mV (RCA) - 6V (FIO) - LEVEL 100%
Signal to Noise Ratio > 90dB
Frequency Response 8Hz ~ 250Hz (-3dB)

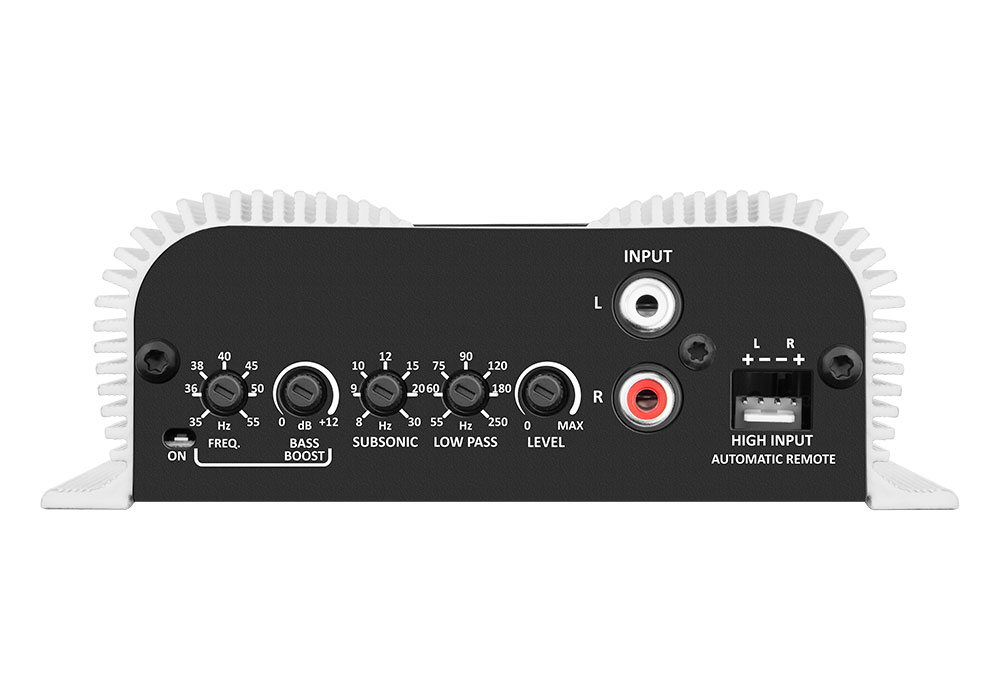

Crossover high pass (HPF) 8Hz ~ 30Hz (-12dB/8ª) Variable
Crossover low pass (LPF) 55Hz ~ 250Hz (-12dB/8ª) Variable
bass boost Parametric, Freq.: 35Hz ~ 55Hz / Boost: 0 ~ +12dB
Efficiency 82%
Input Impedance 10K Ohms (RCA) / 1K Ohms (WIRE)
protection system Thermal Protection and Output Short Circuit
Minimum Supply Voltage 8 VDC
Maximum Supply Voltage 16 VDC
Consumption at rest 0.5A
Maximum music consumption @13.8 VDC - 17.5A
Maximum consumption in sinusoidal signal 35A
Dimensions (WxHxD) 5.28" x 1.57" x 5.43" (134 x 40 x 138mm)
Weight 1.25lb (0,57kg)
EAN 7898556845915
