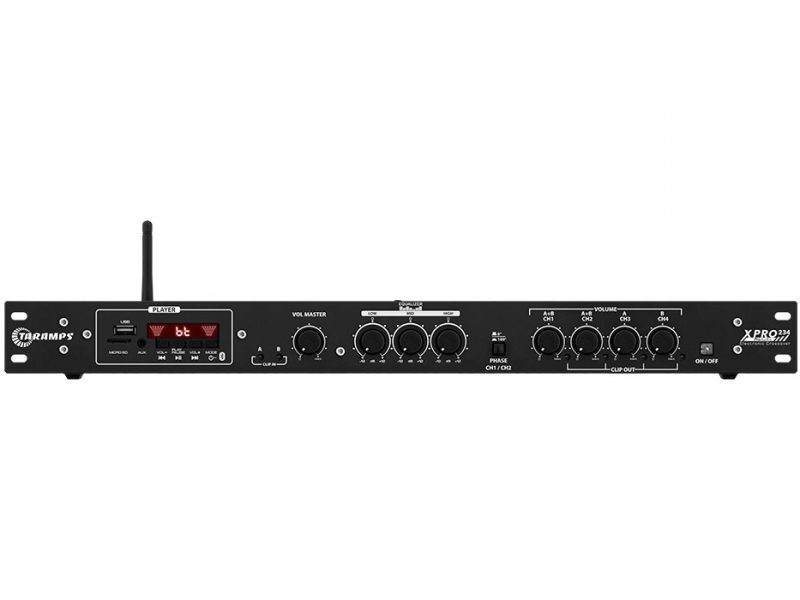

Crossover X PRO 234 – Take Full Command of Your Audio

The Crossover X PRO 234 is the ideal choice for those looking to adjust every detail of their audio with maximum precision. With strategic frequency cuts, bass, mid and treble equalization and independent volume control, it ensures maximum performance from your sound system.

Main Features:

Connectivity and Audio Inputs

2 balanced audio inputs, ideal for connecting to stereo mixers, such as the T0804 Player FX;

Input Clip indicators for real-time monitoring;

Integrated Player with multiple playback options:

Bluetooth with external antenna for stable connection;

USB input for pen drives;

Micro SD card reader;

FM tuner;

P2 auxiliary input;

Optical input, perfect for connecting to TVs;

Remote controller for greater ease of use.

Total Audio Control

Master Volume, adjusting the overall volume of the Bluetooth, USB, Micro SD, FM, Auxiliary, Optical and balanced inputs A and B;

Bass, Midrange and Treble Equalization (Low, Mid and High);

4 balanced audio outputs, each with individual volume adjustment and Clip indicators;

Phase adjustment (0° or 180°) on outputs 1 and 2, to correct phase cancellation.

Crossover Configuration

Channels 1 and 2:

Subsonic Filter with 4 options: Full, 40Hz, 50Hz and 70Hz;

LPF (Low Pass Filter) with 4 options: Full, 90Hz, 120Hz and 160Hz.

Channels 3 and 4:

HPF (High Pass Filter) with 4 options: Full, 80Hz, 120Hz and 160Hz.

Operating Modes – Mono or Stereo

Mono/Stereo Selector Switch for greater configuration flexibility:

Mono Mode: allows operation with a single balanced cable on input B, replicating the signal to input A;

Stereo Mode: requires connection of two balanced cables, one on each input.

Example of Stereo Application

Inputs: Balanced A and B connected to the mixer;

Configuration:

Subsonic: 40Hz;

LPF: 120Hz.

Outputs:

Channel 1 → Input A of the T 2.800 Amplifier;

Channel 2 → Input B of the T 2.800 Amplifier;

Amplifier output A → T 1200.1 LF speaker box (R);

Amplifier output B → T 1200.1 LF speaker box (L).

Example of Mono Application

Input: Balanced B connected to the mixer;

Configuration:

HPF: 120Hz;

LPF: 120Hz;

Subsonic: 40Hz.

Outputs:

Channel 2 → Input A of the T 2.800 Amplifier;

Channel 3 → Input B of the T 2.800 Amplifier;

Amplifier output A → T 1200.1 LF speaker box;

Amplifier output B → T 400.1 HF speaker box.

Design and Efficiency

Compact and robust: 1 RU (44.45mm or 1.75”), ideal for racks;

Automatic dual voltage (90V - 240V), ensuring compatibility with any outlet;

Switched-mode power supply, providing energy efficiency and lower consumption;

Front ON/OFF switch for easy operation;

Brazilian standard socket plug according to NBR 14136 for full compatibility (requires adaptors for other socket plug standards).

With the X PRO 234, you have absolute control over your audio, ensuring quality, power and the best performance for your sound system!
