TLC 3000

Taramps Long Distance Control

Description

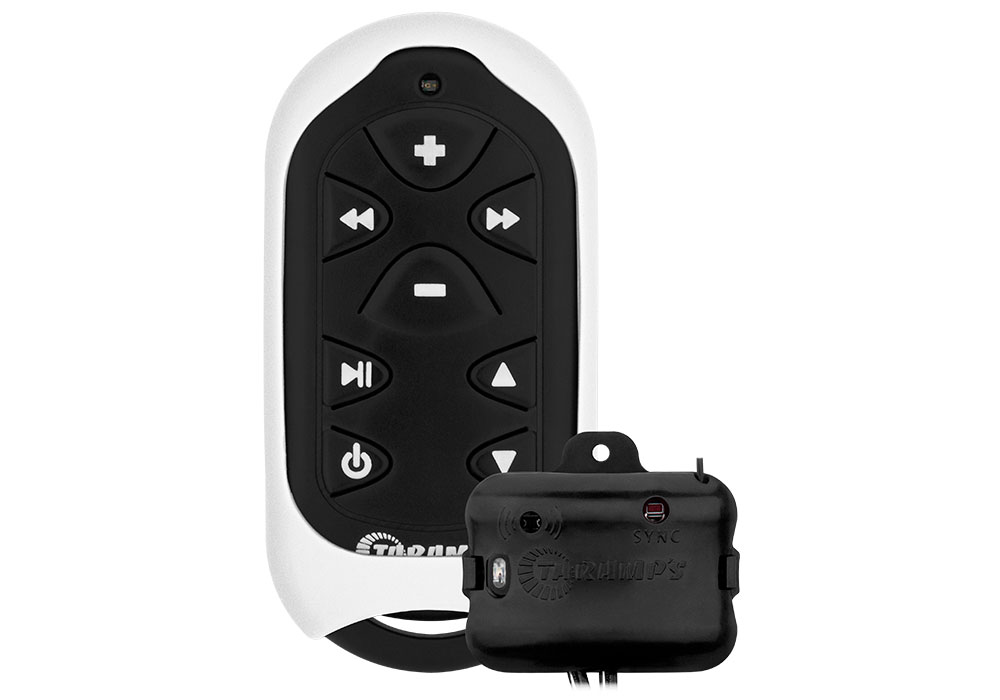

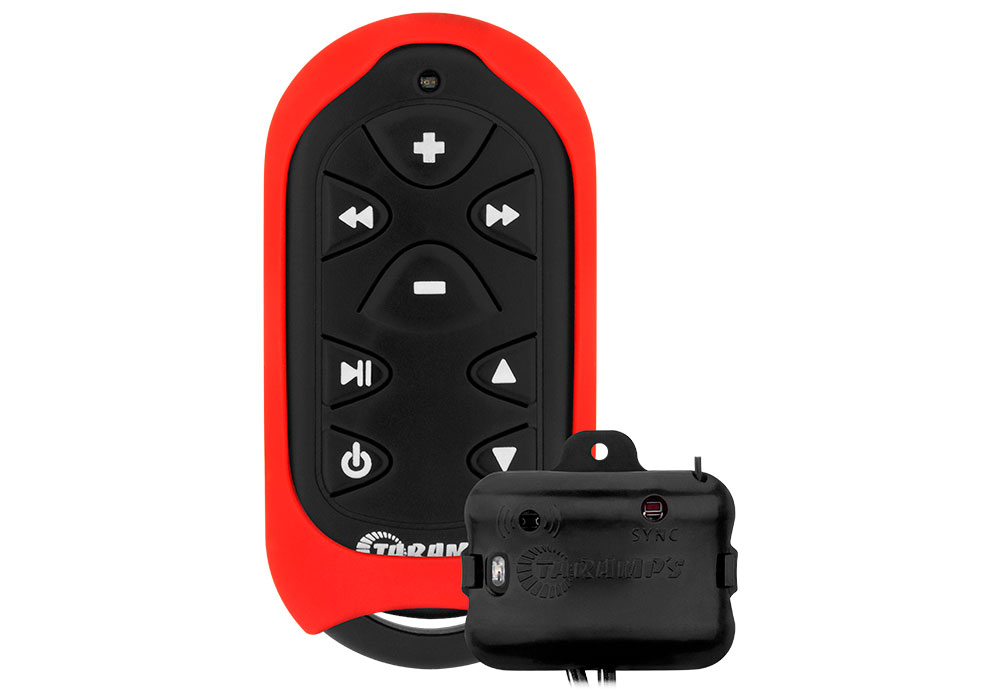

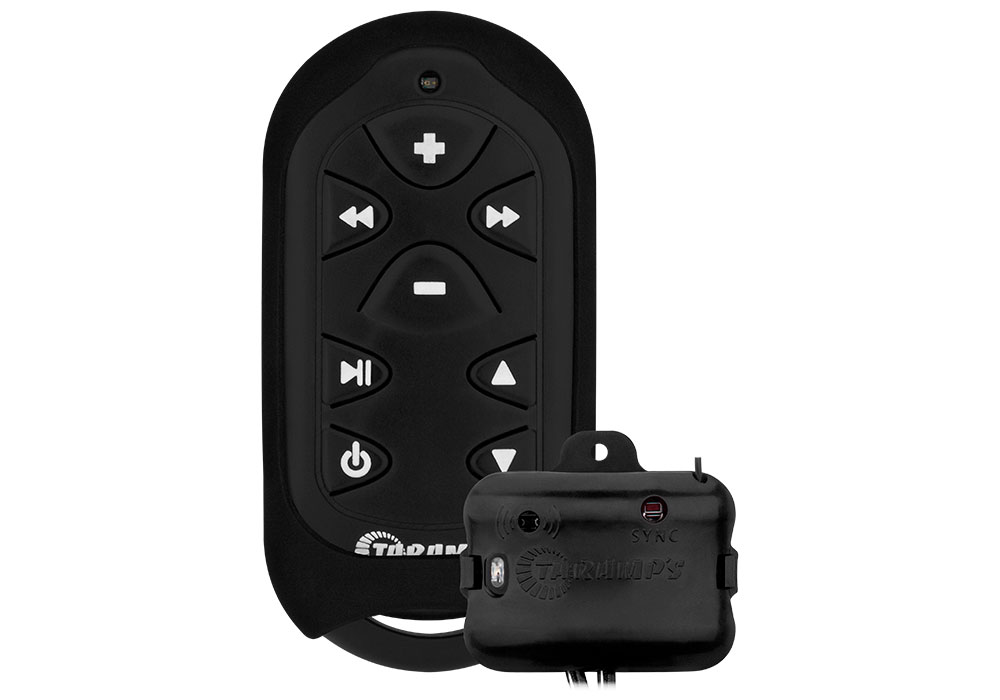

The TLC 3000 is a long-distance control designed to adapt to most players that already have factory-set remotes controls. Ideal for devices with rear USB input, it is suitable for most audio players on the market. Offers efficiency and high performance, controlling your system from a distance of up to 300m in an outdoor area. It has codes that prevent the copying and retransmission of its signals, reducing external interference as much as it is possible (FSK). Also, with pre-defined settings and the synchronization of up to 3 controls (the main one plus 2 spares), in addition to being very easy to install.

Product videos

(PT) https://www.youtube.com/watch?v=Tbl-fRv8_5M&t=11s

Technical information
Power Supply Voltage Receiver Base: 6 ~ 16VDC
Transmitter (Control): 1.8 ~ 3.6V (Battery)
Maximum consumption Receiver Base: 30mA
Transmitter (Control): 7mA (Battery)
Modulation: FSK
Frequency: 433,5 Mhz
Maximum Power: +10dBm
Dimensions (WxHxD) Receiver Base: 2.13" x 0.67" x 1.81" (54 x 17 x 46mm)
Transmissor - Control: 1.45" x 4.53" x 3.01" (36.5 x 11.5 x 76.5mm)
Weight Receiver Base: 0.22 lb (0,1kg)
Transmitter-Control: 0.22 lb (0,1kg)
EAN 7898556841863
Additional Information
Package Content:

01 - Control (transmitter)
01 - Taramps Customized Cord
01 - Base (receiver)
01 - 4-way cables already connected
