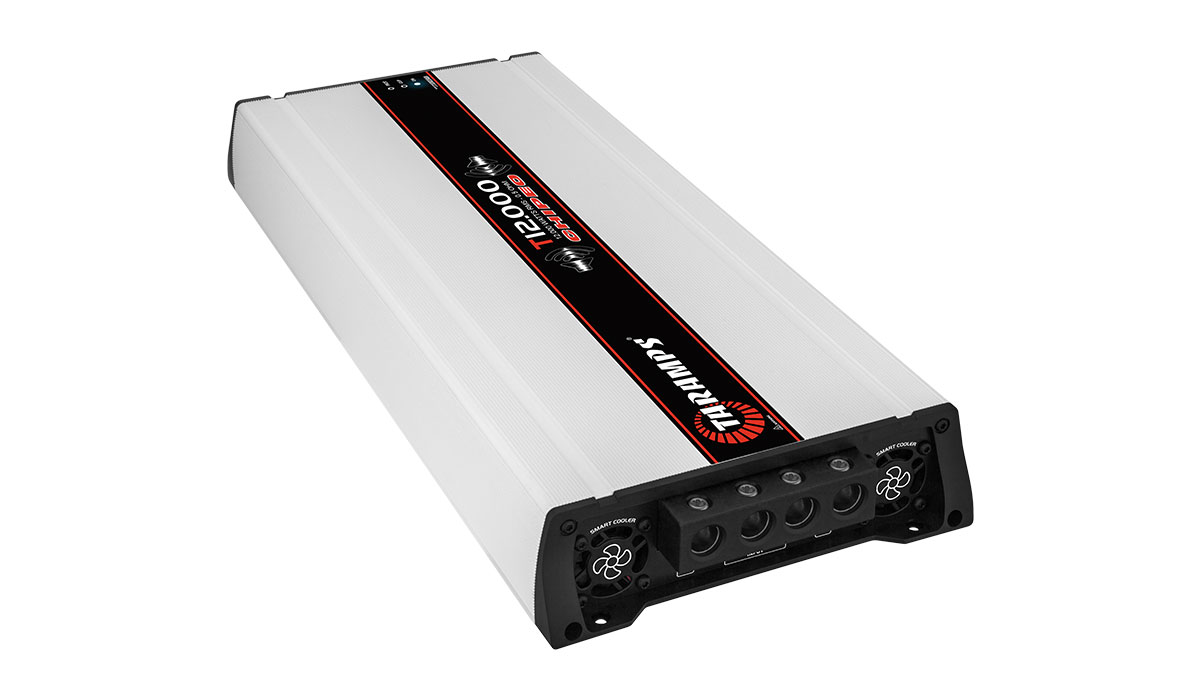

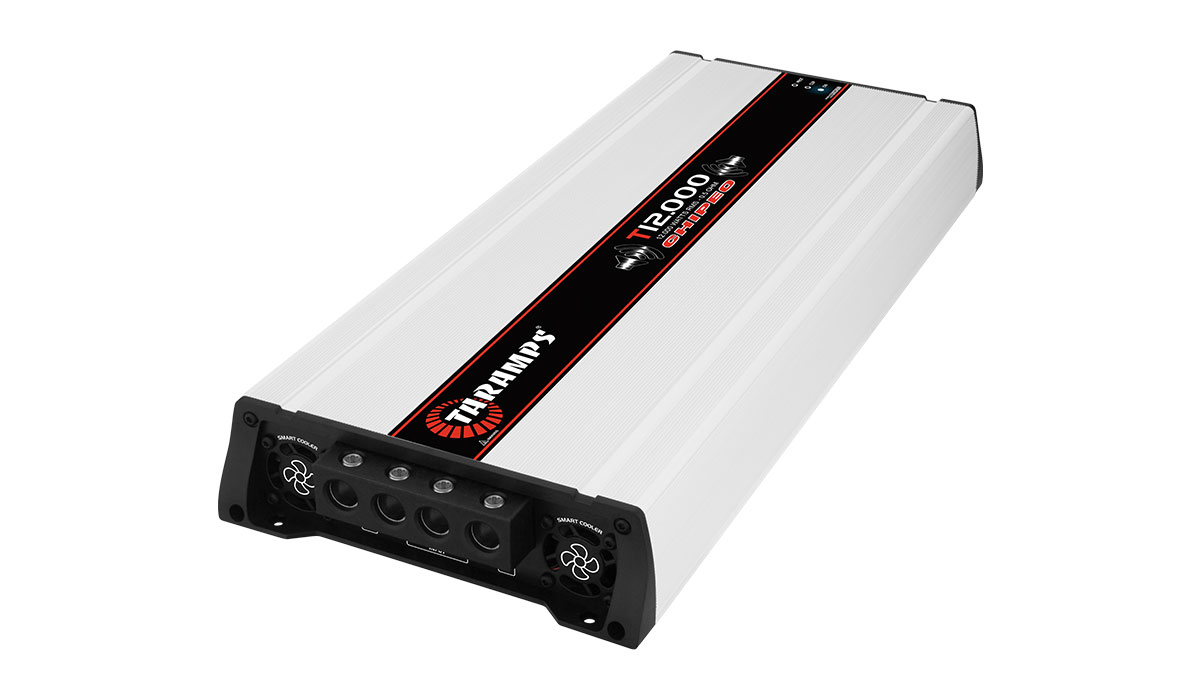

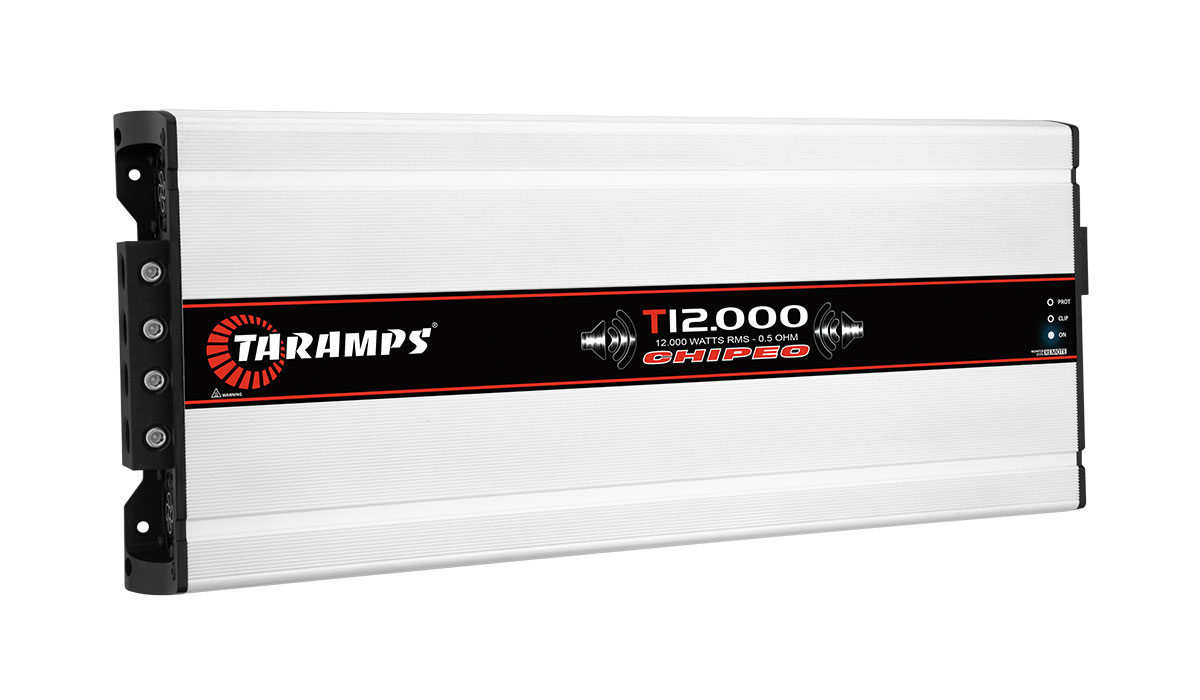

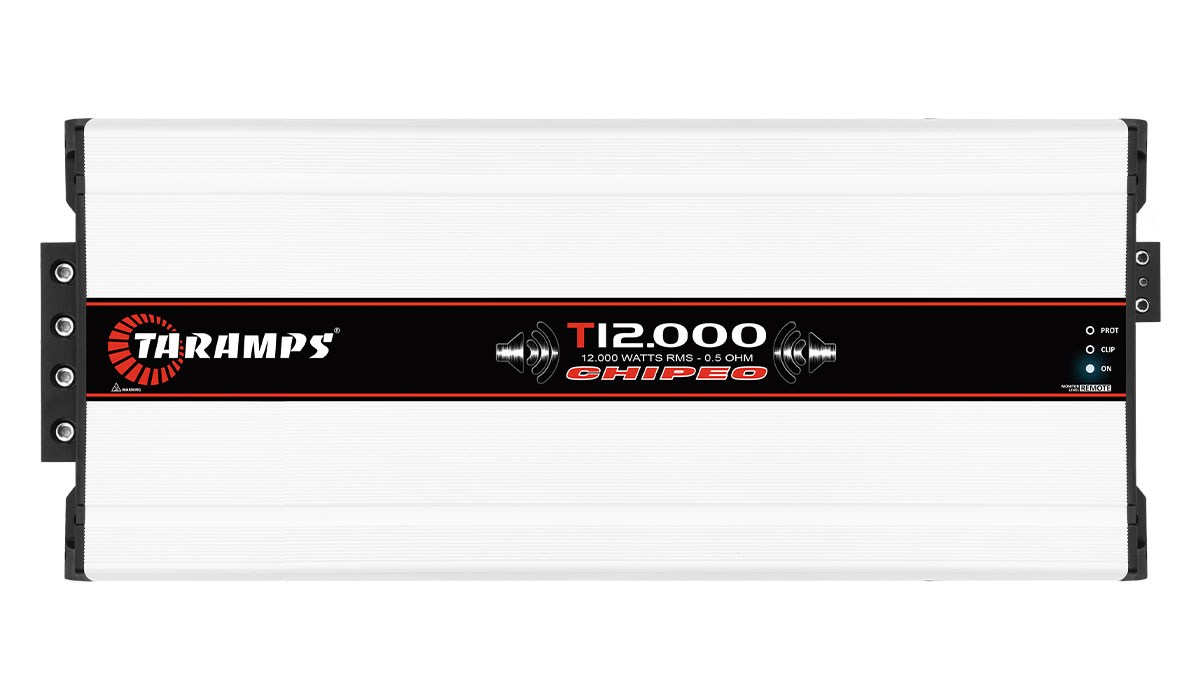

TARAMPS T 12.000 CHIPEO 0.5 OHM AMPLIFIER – MAXIMUM POWER AT LOW IMPEDANCE
Push your build to the extreme with the Taramps T 12.000 Chipeo 0.5 Ohm, now available in a low-impedance version designed for serious power and performance.
Delivering up to14,000 WRMS at 14.4V and12,000 WRMS at 12.6V, this amp is built for bassheads, SPL competitors, and anyone chasing real output.
This isn’t just an amp – it’s a powerhouse. Whether you’re running massive subs or competing at high levels, the 0.5 Ohm stable design gives you more control and more punch. It’s engineered to deliver clean, consistent power.
With a frequency response from 5Hz to 5kHz, the T 12.000 Chipeo delivers tight lows and crisp mids – perfect for subs, mid-bass, and midrange drivers. It features RCA inputs with adjustable gain (0.2V to 4V), making it easy to integrate into any system.

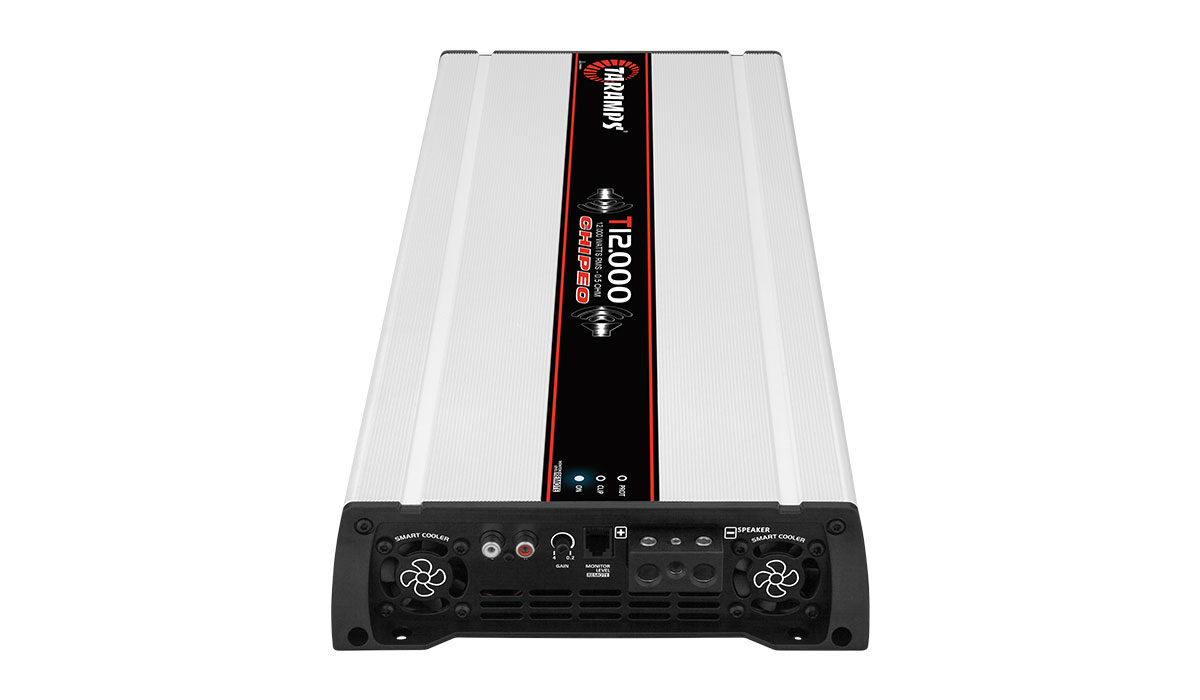

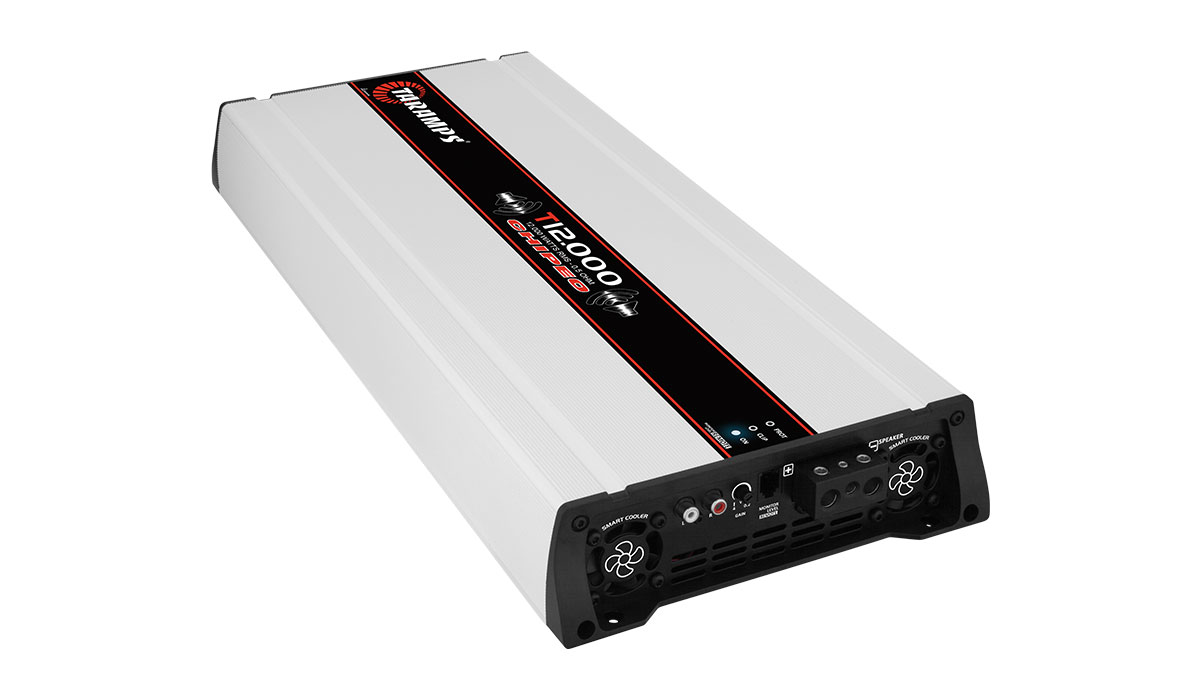

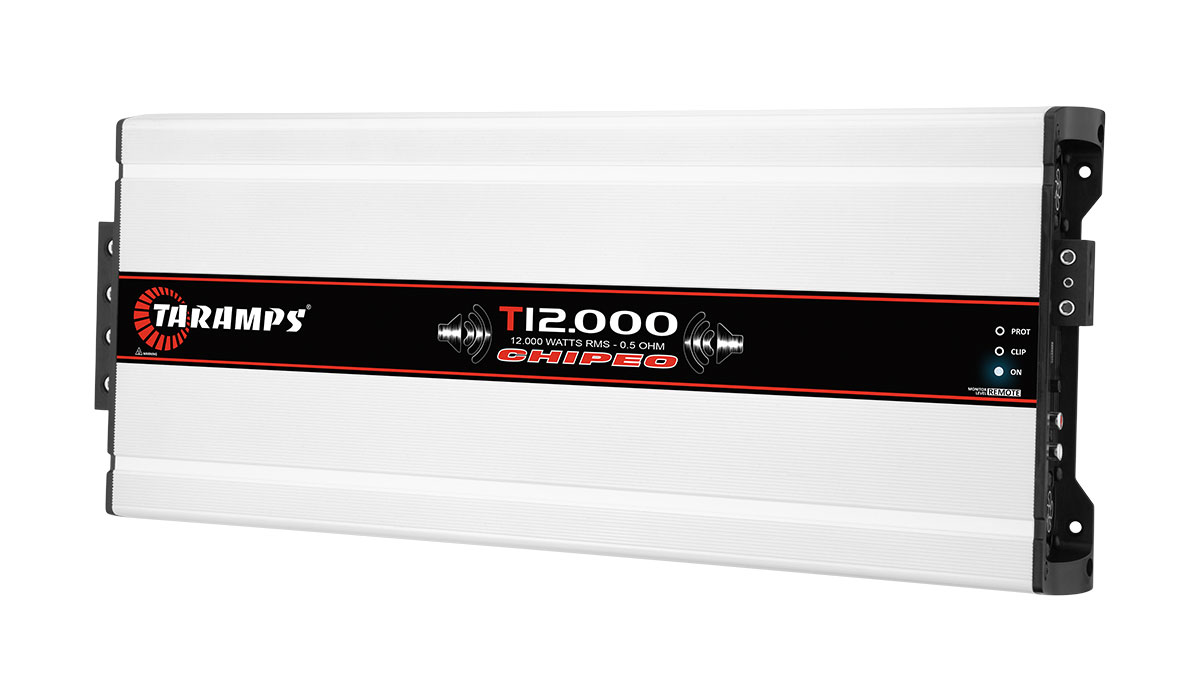

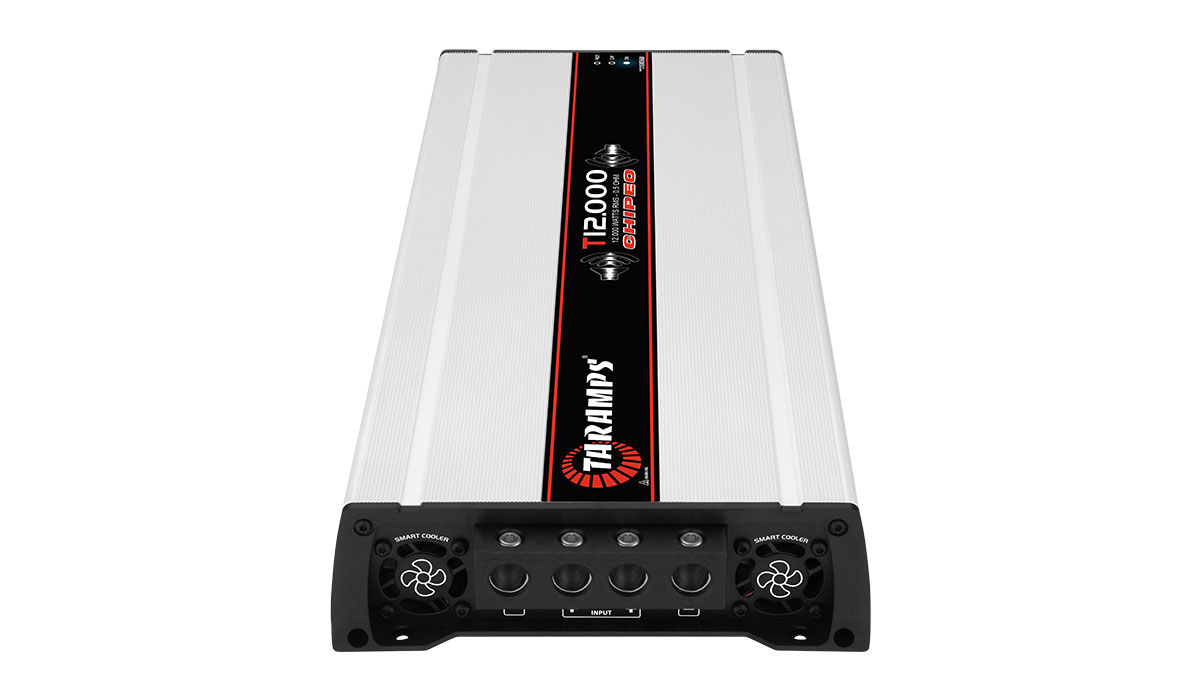

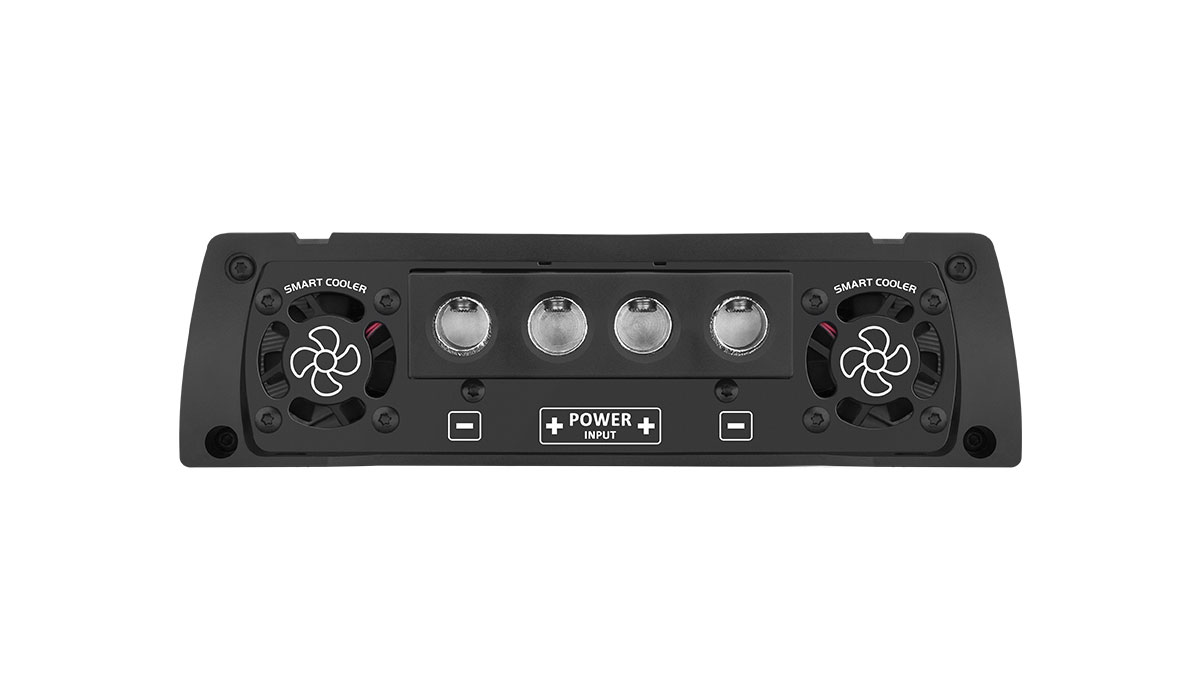

Equipped with dual power inputs (70mm² / 2/0 AWG) and speaker outputs (up to 10mm² / 7 AWG), this amp is ready for serious current flow. LED indicators show status, clip, and protection in real-time. It’s also compatible with the M1 LED Monitor and Monitor Level Remote (sold separately).
Operation class | D |
---|---|
Minimum Output Impedance | (PT) 0,5 Ohm |
Number of Channels | 01 |
Maximum power | Output Power @12.6 VDC: 12000W RMS Output Power @13.8 VDC: 12700W RMS Output Power @14.4 VDC: 14000W RMS |
Input Sensitivity | 220mV ~ 4V RMS |
Signal to Noise Ratio | >90dB |
Frequency Response | 5Hz ~ 5KHz (-3dB)** |
Efficiency | 77% |
Input Impedance | 10K Ohms |
protection system | Short-Circuit to Output, Short on output compared to GND, Low impedance at output, High/Low supply voltage and Thermal protection |
Minimum Supply Voltage | 9 VDC |
Maximum Supply Voltage | 17 VDC |
Consumption at rest | 4,20A |
Maximum music consumption | @12.6 VDC: 617A |
Dimensions (WxHxD) | 228 x 64 x 532 mm (8.98" x 2.52" x 20.94") |
Weight | 7.60 Kg (16.72lb) |
Additional Information | |
Rated Power Consumption: 1234A | |
EAN | 7908706602784 |
