TARAMPS MIXER T 0302 PLAYER MULTICOLOR RGB CONTROL

3-Channel Mixer with Bluetooth, Player, RGB LED Lighting, and Controller for LED Strips and Strobes

Description

Have you ever imagined your mixer controlling the LED strips of your sound system, car audio build, speaker enclosure, or custom projects?
With the new version of the T 0302 PLAYER MULTICOLOR, that is now a reality.

The mixer you already know and trust comes even more complete, featuring RGB Control, that permits control the system light effects – such as LED strips and strobe lights – in a practical and fully customizable way. This function supports LED strips with up to 300 LEDs connected in series and up to 10 strobe lights, all controlled through a long-range remote control.

With up to 16,000 different effect combinations, you can fully customize the lighting and save up to 10 presets, ensuring a unique visual for every project. And of course: it keeps the well-known features of the traditional model, including illuminated knobs and the classic VU effect, delivering presence and style to your setup.

The T 0302 PLAYER MULTICOLOR RGB CONTROL also includes an integrated player with Bluetooth, USB and FM radio, plus a remote control, offering total convenience for everyday use. The player supports USB flash drives up to 64 GB, with MP3 and WMA files at bitrates of up to 320 kbps (high quality).

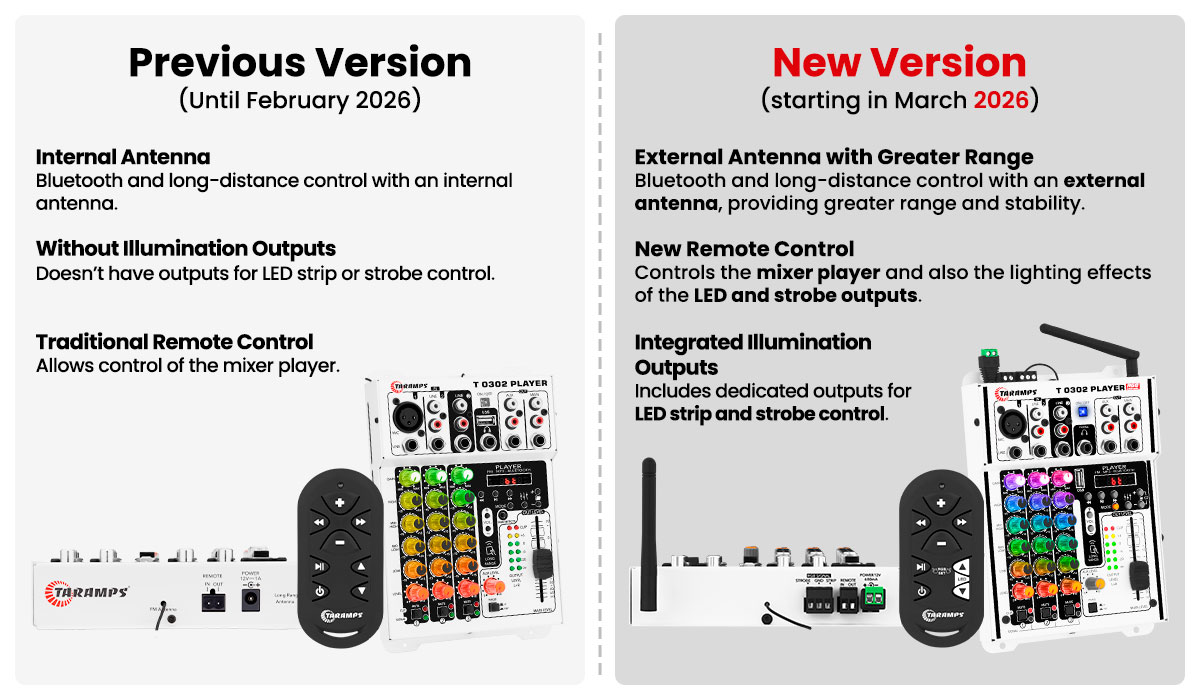

Another new feature is the external antenna, which provides greater range for both Bluetooth and remote control operation, ensuring a more stable connection even in areas with obstacles and interference.

It features 3 input channels, with great connection flexibility:

  • Channel 1 balanced, with shared XLR and 1/4” (P10) inputs, high sensibility, and wide gain range, allowing connections of microphones and audio peripherals with line-level outputs.
  • Channels 2 and 3, with RCA L+R inputs and 1/4” (P10) connections, ideal to connecting players, smartphones, DVD/CD Players, audio processors, interfaces, and other line-level devices.

All inputs have independent GAIN, LEVEL, and 4-band equalization controls (HIGH, MID HIGH, MID LOW, and LOW, with ±15 dB), ensuring precise control and superior sound quality.

Additionally, the timed MUTE function on all channels prevents noise during power on and off, eliminating the need for sequencing.

To complete the package, it features two outputs: MAIN and AUX, both with high output voltage and drive capability, delivering up to +18dBu or 6,3Vac, with clean, distortion-free audio.

T 0302 PLAYER MULTICOLOR RGB Control.
The perfect harmony between sound, control, and aesthetics.

Product videos

Technical information
Frequency response (-3dB) 2Hz ~ 76Khz
Total Harmonic Distortion <0.009% (T.H.D.)
SIGNAL-TO-NOISE RATIO (SNR) 112dB
Input Sensitivity Channel 1: Mic (XLR) Min: 500mV ~ Max 7mV
Line (P10) Min: 620mV ~ Max 7.6mV
Input Sensitivity Channels 2/3: Line (P10/RCA) Min: 2.55V ~ Max: 60mV
4 EQUALIZATION BANDS PER CHANNEL High ±15dB (12KHz)
Mid High ±15dB (2.5KHz)
Mid Low ±15dB (300Hz)
Low ±15dB (80Hz)
INPUT IMPEDANCE Channel 1: Mic (XLR): Unbalanced 4K Ohms
Balanced 8K Ohms
Line (P10): Unbalanced 8.5K Ohms
Balanceada 17K Ohms
BLUETOOTH VERSION 4.0 SBC / A2DP
Áudio Format MP3 / WMA
MAXIMUM BIT RATE 320Kbps
FM 87.5MHz a 108MHz
EQUALIZATION MODE POP, ROCK, JAZZ, COUNTRY, NORMAL
REMOTE CONTROLLER 433.5MHz 10dBm
Output Impedance Main Out (P10/RCA): 47R
Aux Out (P10/RCA): 47R
Maximum output Level Main Out (P10/RCA): 18 dBu/6.3Vac
Aux Out (P10/RCA): 18 dBu/6.3Vac
POWER SUPPLY VOLTAGE (POWER) 9 ~ 16 Vdc
Maximum consumption 680 mA
REMOTE INPUT (REM CONNECTOR) 9 ~ 16 Vdc
REMOTE OUTPUT (REM CONNECTOR) 100 mA
Dimensions (W x H x D) 165 x 42 x 228mm (6.5" x 1.65" x 8.98")
Weight 0.90Kg (1.91lb)
EAN 7908706600810
