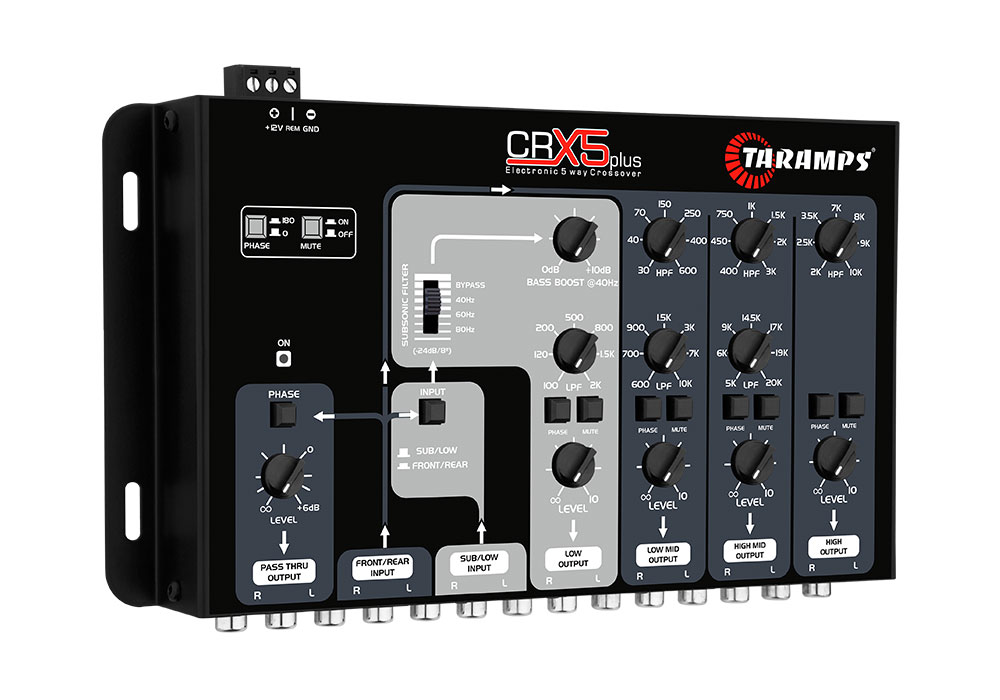

CRX 5 Plus

Crossover CRX5 Plus

Description

The CRX 5 Plus crossover has been carefully designed with the latest technology, and manufactured with high quality components and raw materials. It is a reliable product for car audio systems. Offering five formats, it has unique features such as low-route subsonic filter, full-range input, switchable subwoofer input, pass-through output, and routes that can be muted and phase-adjusted. In addition, it also features a BASS BOOST control, which is a boost to the bass frequencies in the bass route.

Technical information
Input impedance 10K ohmios
Output impedance 470 ohmios
Maximum input level 4.57 V Rms @ (+15.4 dBu)
Maximum output level 9.3 V Rms @ (+21.6 dBu)
Frequency response (-1dB) de 10Hz a 100kHz
Total Harmonic Distortion <0.01% a 1 kHz
Crosstalk (separation between channels) >85dB
Power Supply Voltage 10.5 a 16 VDC
protection system Inversión de Polaridad
Phase 0/180 Graus
Number of copies 4
Via Low (R+L) Mono
Subsonic Filter (Selectable): Bypass/40/60/80Hz ( -24dB/8th butterworth)
Low Pass Filter (Variable): 100Hz to 2kHz (-12dB/Oct Linkwitz-Riley)
Bass Boost: Variable 0 to 10 dB (40Hz)
Fase Selectable: 0/180 Graus
Nivel Variable: Infinito a +10dB
Via Low Mid (R+L) Mono
High Pass Filter (Variable): 30Hz to 600Hz (-12db/Oct Linkwitz-Riley)
Low Pass Filter (Variable): 600Hz to 10kHz (-12dB/Oct Linkwitz-Riley)
Fase Selectable: 0/180 Graus
Nivel Variable: Infinito a +10dB
Via High Mid (R e L) Stereo
High Pass Filter (Variable): 400Hz to 3kHz (-12dB/Oct Linkwits-Riley)
Low Pass Filter (Variable): 5kHz to 20kHz (-12dB/Oct Linkwits-Riley)
Fase Selectable: 0/180 Graus
Nivel Variable: Infinito a +10dB
Via High (R e L) Stereo
High Pass Filter (Variable): 2kHz to 10kHz (-12dB/Oct Linkwitz-Riley)
Fase Selectable: 0/180 Grau
Nivel Variable: Infinito a +10dB
Dimensions (WxHxD) 238 x 42 x 145 mm
Weight 0.70 Kg
EAN 7898556841153
